WD3600C
WD3600C — Heavy-duty diesel crawler tub grinder. 408KW, 25-40 T/hour, Ø3600mm tub. Ideal for forestry and land-clearing on uneven ground.
المواصفات
| Model | WD3600C |
| Chassis | Crawler (Self-Propelled) |
| Power | 408KW Diesel |
| Tub Diameter | Ø 3600mm |
| Cutting Hole | Ø 2350mm |
| Capacity | 25–40 T/hour |
| Dimensions | 7500 x 2600 x 3500 mm |
| Weight | 21 Tonnes |
| Spindle Speed | 850 rpm |
| Fuel Consumption | 20–40 L/H |
| Fuel Tank | 310 L |
| Hydraulic Tank | 420 L |

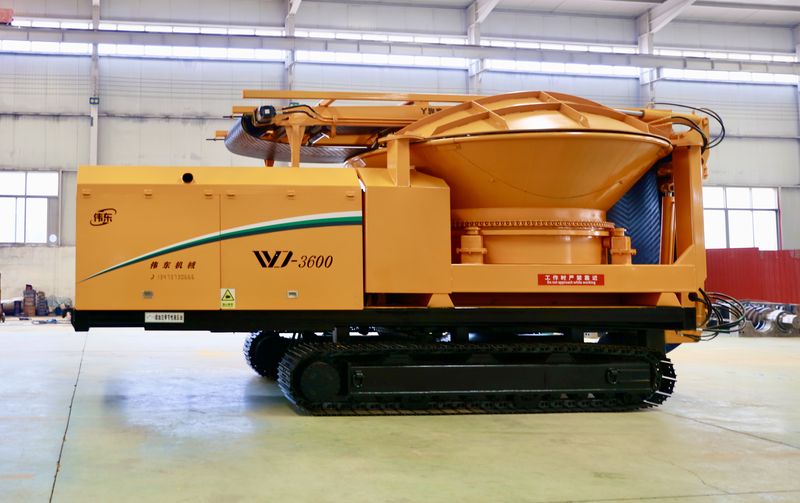

WD3600C
The WeiDong WD3600C is a diesel-powered crawler tub grinder for bulky wood and biomass processing on uneven or unprepared ground. It combines the 3600 mm tub platform with crawler mobility for repositioning within forestry, land-clearing and biomass sites.
التطبيقات
- ✓Forestry and land-clearing sites with uneven ground
- ✓Frequent repositioning within a working area
- ✓Roots, stumps and bulky mixed-length wood
Recommended Feed Materials
- Tree roots and stumps
- Branches and forestry residue
- Land-clearing wood waste
- Palm residues and selected bulky biomass
Related معصر الأنبوب Models
Tub Grinder

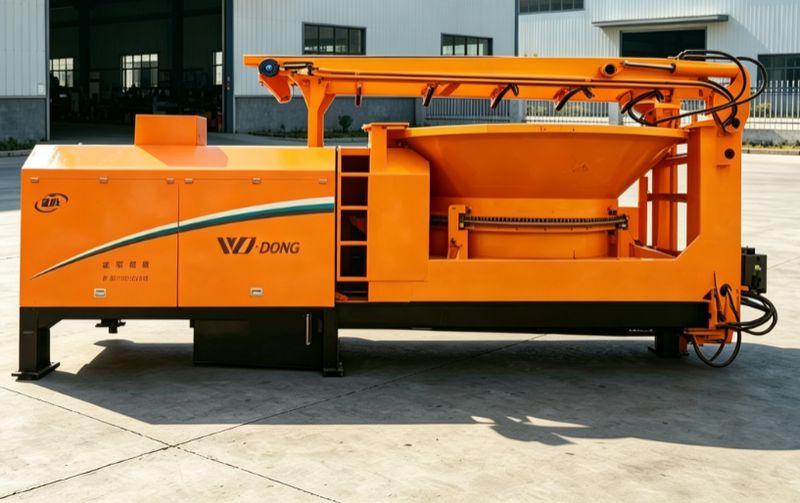

WD3600M
Skid-mount tub grinder for fixed or semi-fixed biomass processing.
Tub Grinder

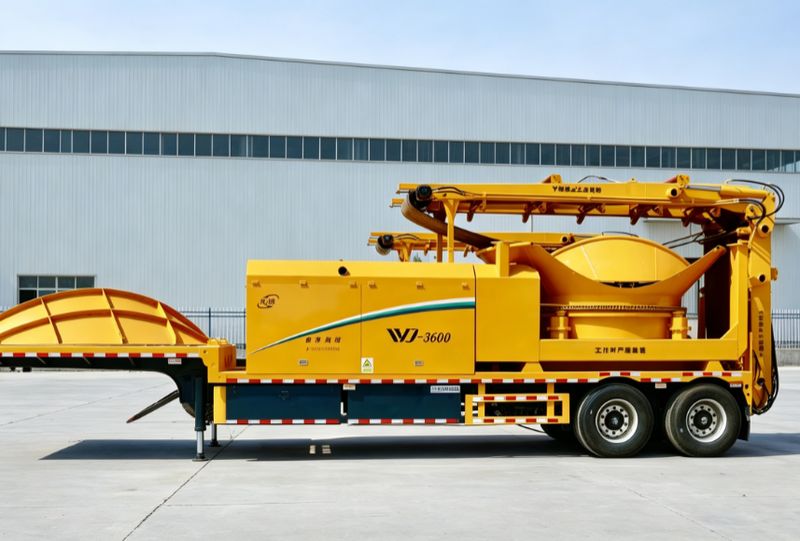

WD3600S
Semi-trailer tub grinder for mobile high-volume processing.
Tub Grinder

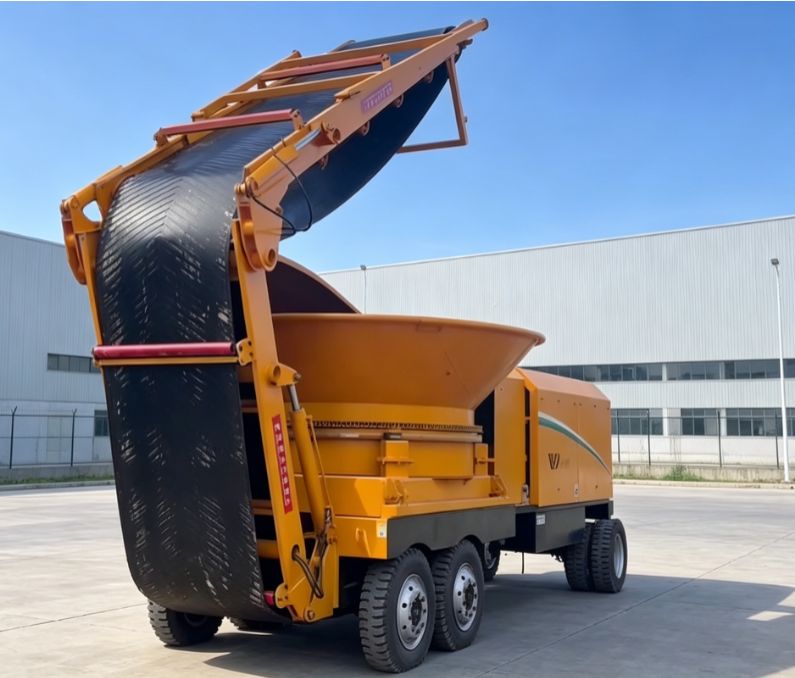

WD3600W
Road-wheeled self-propelled tub grinder for easy site transfer.
Tub Grinder

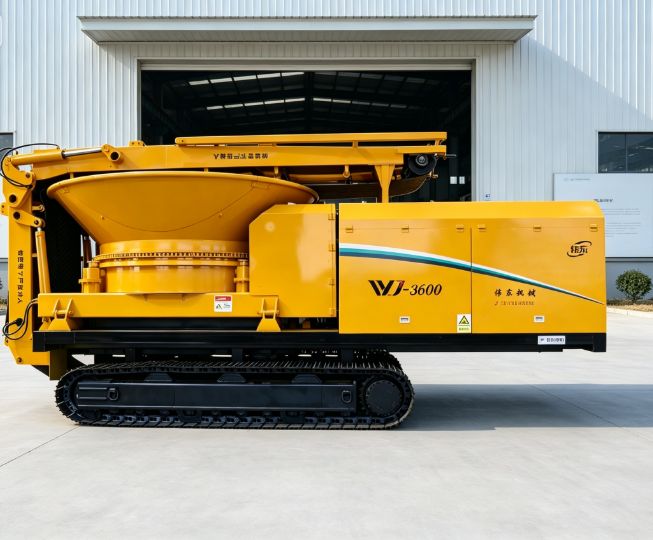

WDE3600C
Electric crawler tub grinder for sites with power supply.
Tub Grinder

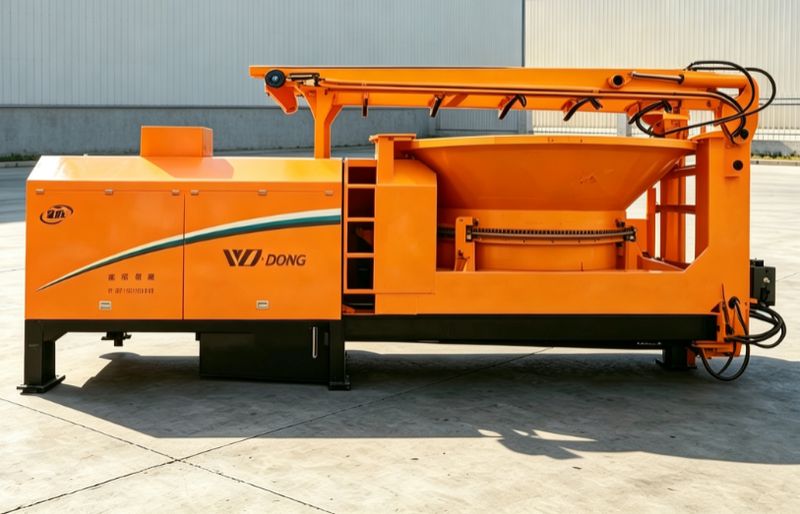

WDE3600M
Electric skid-mount tub grinder for fixed installations.
Tub Grinder

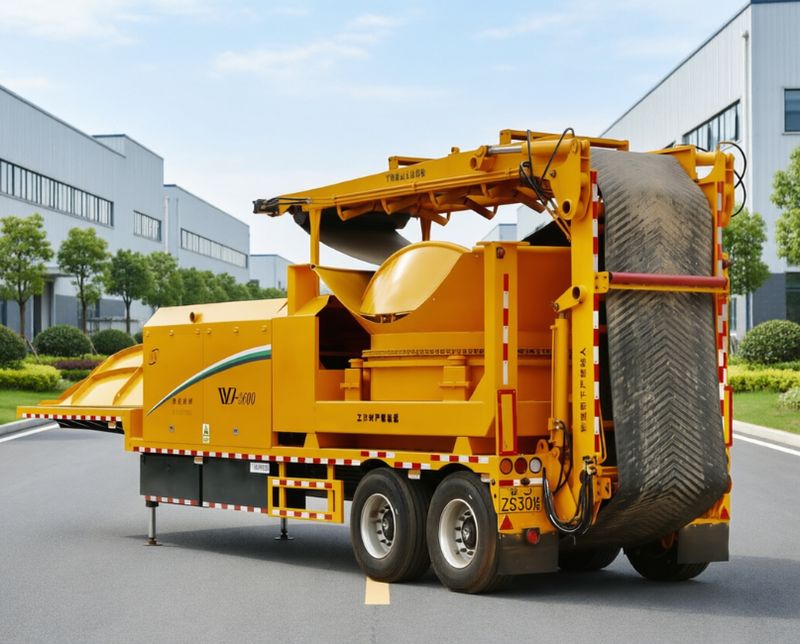

WDE3600S
Electric semi-trailer tub grinder for mobile electric operations.
Tub Grinder
WDE3600W
Electric road-wheeled tub grinder for self-propelled electric operations.
